| Main technical parameters | ||
| 最大原料宽度 | Maximum raw material width | 1200mm |
| 最大分切厚度 | Maximum cutting thickness | 8mm |
| 最小分切宽度 | Minimum cutting width | 35mm |
| 机械最高速度 | Mechanical maximum speed | 150m/min |
| 纸管内径 | Paper tube diameter | 3-inch core (φ76-76.5mm) |
| 使用气源 | air source | 6kw/cm² |
| 整机功率 | Whole machine power | About 7.5KW |
| 电源电压 | supply voltage | Three phase 380V/50HZ |
| 机身重量 | Weight | 2100KG |
1.用于纸管分切宽度之用.
2.智能10寸触摸屏及键式均可同时控制.
3.面板主要功能：主轴转速调整、圆刀转速调整、切刀延时设定、移位元速度、寸动速度、到位延时.
4.切管稳定性高：切刀采用油压控制．并可以根据不同的材质要求，调整切刀延时以达到高质量、高速度之切割.
5.伺服马达驱动，配合精密螺杆及直线滑轨，使切刀行程顺畅，定位精确．伺服马达的精度为0.1mm.
6.自动翻转机构：裁切过程中，1支切割主轴待料，1支上纸管，1支卸纸管.
7.整个过程全自动；此可节省时间，增加工作效率，降低工作强度，保证人身安全.

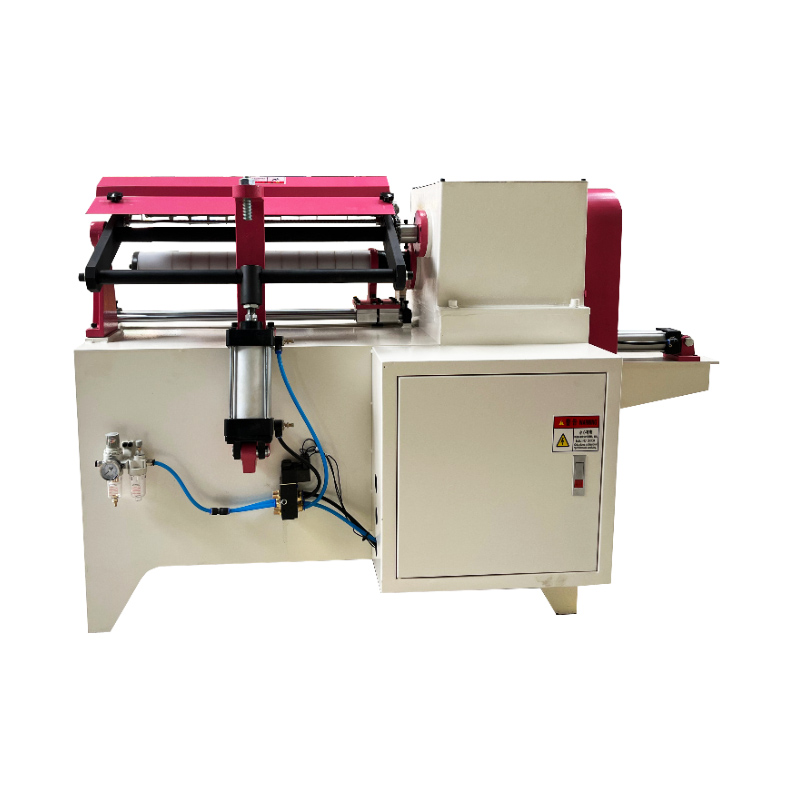

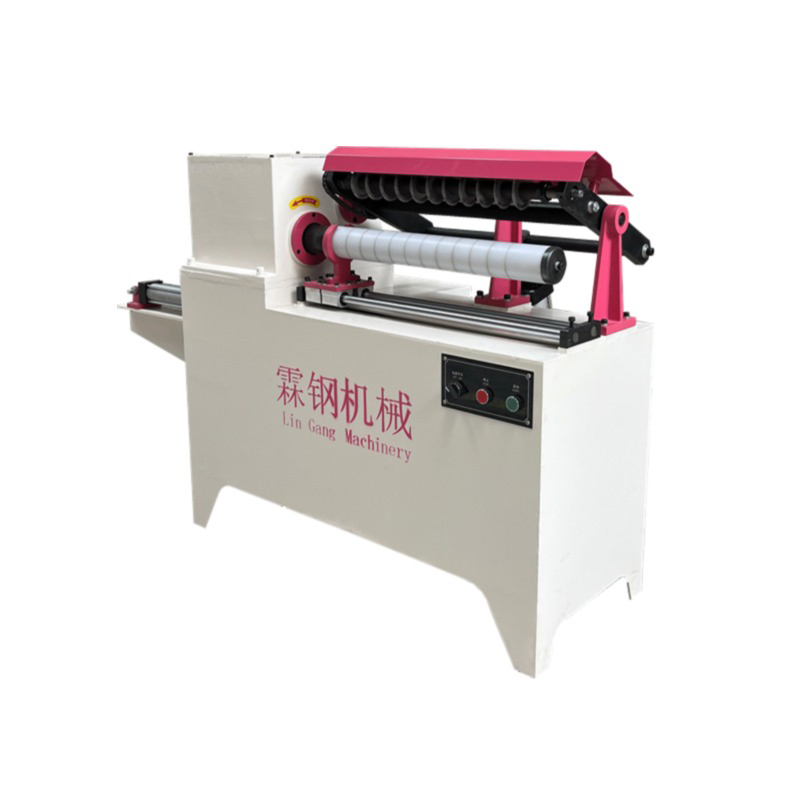

1. Used for cutting the width of paper tubes
2. The intelligent 10 inch touch screen and keyboard can be controlled simultaneously
3. Main functions of the panel: spindle speed adjustment, circular cutter speed adjustment, cutter delay setting, displacement element speed, inch speed, and positioning delay
4. High stability of pipe cutting: The cutting blade is controlled by hydraulic pressure, and the cutting blade delay can be adjusted according to different material requirements to achieve high-quality and high-speed cutting
5. Driven by a servo motor, coupled with precision screws and linear slides, the cutting tool travel is smooth and the positioning is precise. The accuracy of the servo motor is 0.1mm
6. Automatic flipping mechanism: During the cutting process, one cutting spindle is waiting for material, one paper feeding tube, and one paper unloading tube
7. The entire process is fully automated; This can save time, increase work efficiency, reduce work intensity, and ensure personal safety
